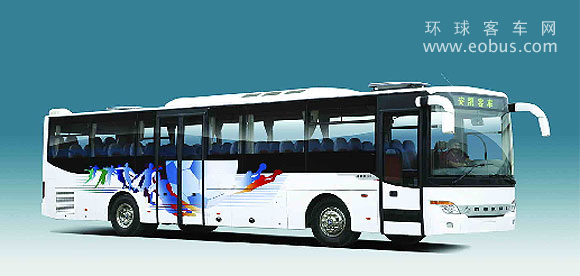

Commuter Bus

Model

HFF6121KZ-2

Engine Location and Driving Motion

4¡Á2 / Rear Engine 4¡Á2

Profile Measurement L¡ÁW¡ÁH

mm

11910¡Á2550¡Á3330

Wheel Base

mm

6000

Track Base

mm

2046/1847

Overhang Front / Rear

mm

2620/3290

Min. Turning Diamater

m

23

Approach / Departure Angle

¡ã

8/8

Max. Speed

km/h

90

Kerb Weight

kg

10800

Max. Total Mass

kg

16500

Max. Gradability

%

¡Ý20

Fuel consumption of 100Km

L

Limited Condition 24

Electric Equipment

24V Negative Linked with Iron

Body Frame

Monocoque

Seats Quantity

63+1+1
