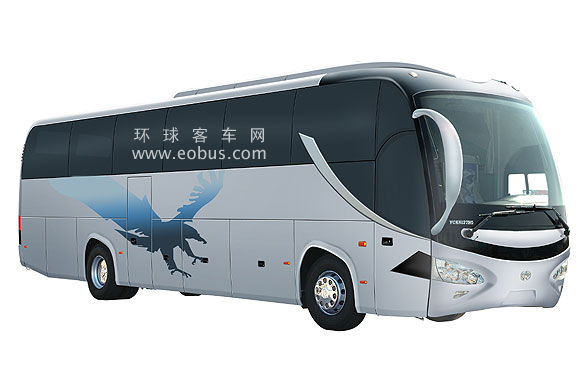

YCK6127HG - Zonda



  Related picture
More >>
YCK6127HG - Zonda
YCK6127HG - Zonda
YCK6127HG - Zonda
YCK6127HG - Zonda
YCK6127HG - Zonda

Coach



Model

YCK6127HG

Overall length*width*height (mm)

11980*2500*3860

Seat capacity

47+1+1 (24-55)

Complete bus mass (kg)

12900

Max loading mass (kg)

17200

Max.speed (km/h)

120

Engine Model

WP10.336N

Position

Truss, rear front mounted

Max.power (kw/ps)

247/336

Max torque (N.m/rpm)

1500/1000-1500

Displacement (ml)

9726

Fuel type/Exhaust standard

Diesel/Euro III

Chassis

Zonda chassis

Transmission

Six speed transmission

Front axle

"I"type section, 6.5 T

Rear axle

Unitary, mono-deceleration, 13T

Suspension

Multiple-leaf springs/ air suspension

Steering

Hydraulic power steering
