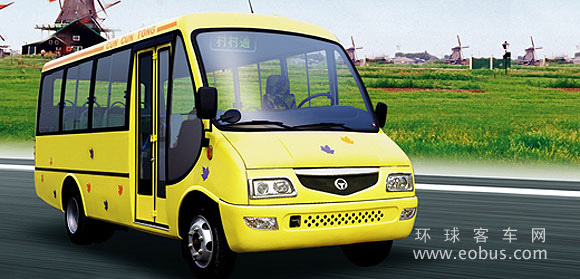

Bus

Model

CKZ6560D

overall length width height(mm)

560019702480 2670

wheelbase(mm)

3100

F/R spring

3/8

Tyre type

6.50-16

F/R tread(mm)

1670 1750/1525 1586

F/R overhang(mm)

825/1675

Max Weight(kg)

4350

curb weight(kg)

2950 3100

angle of approach/departure

20/15

loading capacity+driver ()

19/9-16

MAX.speed km/h

80

fuel

diesel

Displacement(ml)

3707/3298/2672

Max Output kw/rpm

70/3200 70/3200 60/3200

Max Torque  Nm/rpm

235/1800-2000 245/2000-2200 206/2000-2200
