Viaggio 900 - Marcopolo Coach G7



  Related picture
More >>
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7
Viaggio 900 - Marcopolo Coach G7

Length*Width*Height
12500*2600*3480

Model
Viaggio 900 - Front Engine

Application
Chartering, short and medium distance coach lines

Structure
Optimized building concept, with tubular trims and steel patterned trims, hot-dip galvanized and welded; Special alloy steel is also being used in specific points, allowing weight reduction, increasing resistance and reducing corrosion points. Bus body assembled by gaseous atmosphere welding  and protected against corrosion and noise.

External covering
Reinforced-plastic front, rear and roof.
Bonded smooth aluminum side panels (below window line).
Luggage compartment doors in aluminum sheets bonded on an aluminum structure.

Internal covering
Several types of materials and colors available for covering, meeting with international flammability specifications.
Flat flooring covered with plastic carpet or, optionally, with anti-sliding high resistance (PVC) carpet;

Doors
Frontal pantographic passenger's door , with mechanical locking, double sealing, aluminum structure, covered internally with reinforced plastic and externally with bonded aluminum sheet.
Driver-controlled pneumatic activation, with security valve for emergency cases placed in a visible and easy accessed spot.

Wind flow
Two hatches on the roof that work as emergency exits as well.
Natural air renovation system with a rear intake, combined with the air fresh intake, and two air outlets in the vehicle front.
Driver cabin equipped with forced ventilation (heating and cooling options) directed to the windshield and/or to the driver.
Roof natural convection air conditioner and/or heating system are offered as options.

Parcel rack/luggage compartment
Large parcel rack with integrated hand grip, ensuring safety for passengers to move around inside the vehicle; The parcel racks are made of plastic, with aluminum trims, fixated to the structure with steel-covered support brackets.
We also present new overhead service sets for easy seat number identification, directional air conditioner outputs and reading light support with Led's.
Side luggage compartment with hinge system doors, and optionally with pantographic system.
Luggage compartment locks with keys and driver-controlled pneumatic system as optional.

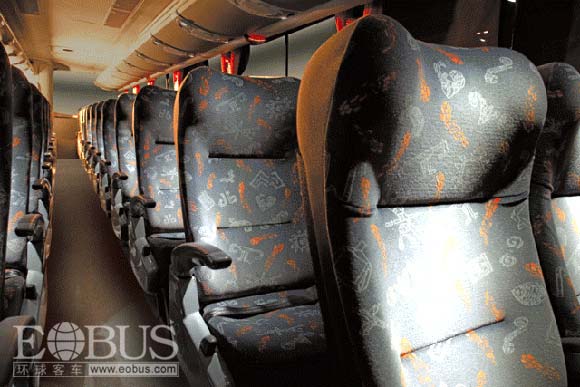

Seats
1060mm wide executive, Soft covering optional, meeting with international safety standards;
Project includes magazine rack, coat rack and individual cup-holders, providing great passenger comfort.

Internal lighting
Internal lighting in parcel rack with fluorescent lamps;
Parcel rack night lights and aisle lights may be offered as optional.
Driver cabin with LED lighting and stairs lights.

Windows and windshield
Two-part green laminated windshield;
Passenger's compartment windows with sliding colorless glasses, assembled on aluminum structure and, optionally, smoked structural glazing may be offered as optional;
Smoked rear windshield may be offered as optional.

Internal items
LED route indicator on top front right side
Audio and Video system, as well as internal display for displaying messages to the passengers may be offered as optional.

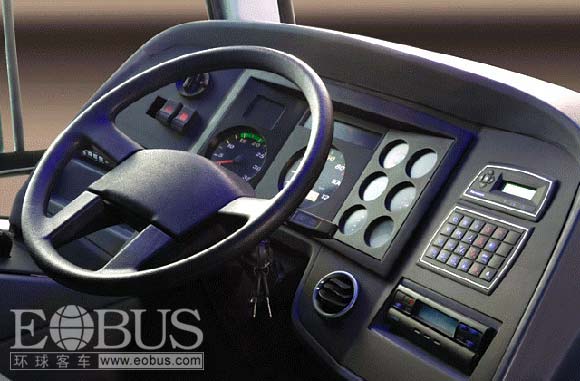

Driver panel with easy-access commands and new Multiplex as standard in all models;

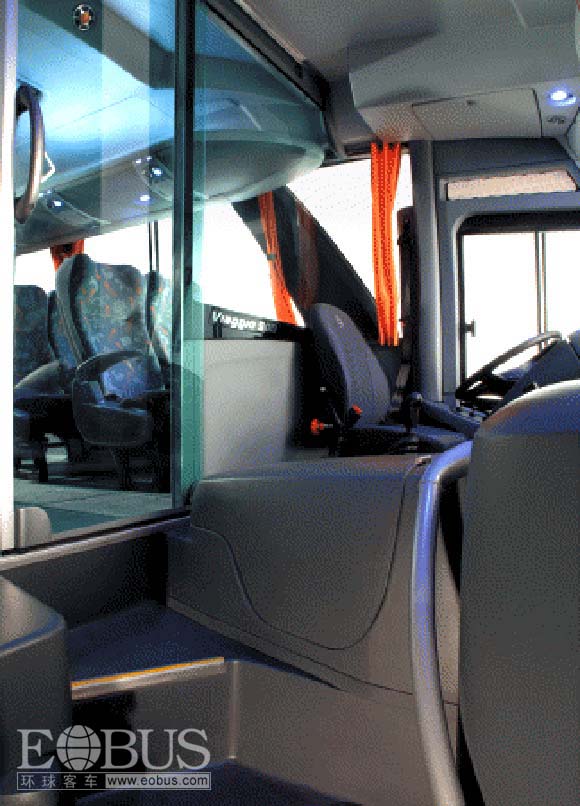

Large stairs room with new hand rail for passengers.
New partition wall concept with wider opening sliding door, focusing on passenger accessibility.
Toilet compartment is offered as optional.

External items

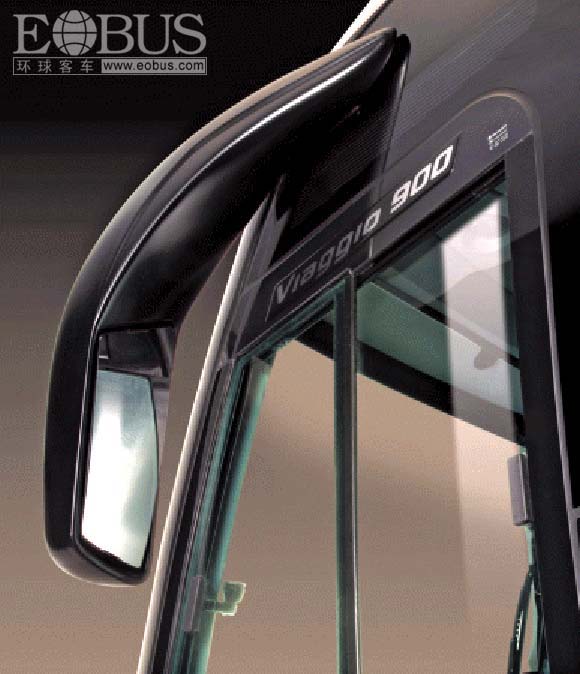

New external rear-view mirrors, pantographic windshield wiper system and new automotive standard locks..
Brand-new external lighting with Day Time Running (DTR) front headlights integrated to the main block , new LED upper front and back markers and new tail lights. Side position lights use LED technology.
Fog driving light embedded to bumper and high-intensity headlight on the main block  instead of DTR may be offered as optional.

Chassis to receive our Bus Bodies
Mercedes Benz OF 1722 model and Volkswagen VW 17.230 model

Passenger capacity
Upon request
