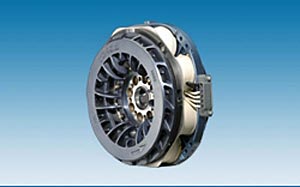

China Terca - TB Series Retarder
- Compact Structure and flexible installation in gearbox or rear axle;
- High efficiency and low power consumption;
- Special material makeup, slight heat deforming of the two rotor turntables, so the moment declining along with heat declining is slight;
- Torque ranges from 600Nm to 2400Nm, adaptable for variety of vehicles;
- Digital controlling system ensures driving safety and stability;
TB Series Parameter
|
Model |
Specifications (mm) |
Weight (kg) |
Voltage 24V |
Voltage 28V |
|
Max.current(A) |
Max.braking torque (Nm) |
Max.current(A) |
Max.braking torque (Nm) |
|
TB 12S |
524 x 483 x 226.5 |
136 |
89 |
1195 |
104 |
1337 |
|
TB 12 |
575 x 531 x 232.5 |
155 |
67 |
1139 |
77 |
1305 |
|
TB 15 |
575 x 531 x 232.5 |
160 |
89 |
1423 |
105 |
1589 |
|
TB 17 |
575 x 531 x 232.5 |
165 |
120 |
1621 |
141 |
1771 |
|
TB 19 |
592 x 544 x 239.5 |
180 |
123 |
1832 |
143 |
2102 |
|
TB 21 |
592 x 544 x 239.5 |
185 |
139 |
2033 |
159 |
2268 | |
|
