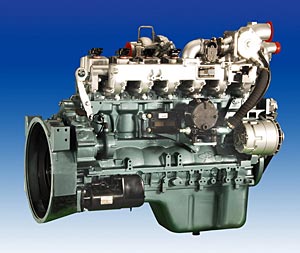

China Yuchai - YC6M Mono-fuel Engine 320-340 HP for Vehicles
Features And Benefits
Higher Reliability;
Electronic control system: gas feeding, ignition and engine management system;
platinum-plated electrode spark plug: High efficient combustion plus long service life;
Air intake & exhaust and combustion system specially designed for gas engine;
Garrett GT40 water-cooled exhaust gas turbocharger: featured by higher efficiency and longer service life;
E-controlled air intake method: low density gas combustion, gentle combustion, high thermal efficiency, low exhaust temperature;
Oxygen sensor: a broad range of air-gas ratios accurately-controlled;
Closed-loop control system for all working conditions plus self-learning and diagnosis.
Lower Noise
Gentle combustion, ultra-low noise, minor vibration, ease and comfort. Specifically, the average noise level < 93dB(A)
Low Emission
Oxidation catalyst converter, up to Euro III standard, further engines up to Euro IV available by upgrading, no visible carbon smoke and particle-free
Easier maintenance
Human-oriented design, higher interchangeability and better approachability
Higher performance & price ratio and better composite benefit
Main Technical Parameters
|
Model |
YC6M280P-30 |
YC6M300P-30 |
YC6M290N-30 |
YC6M310N-30 |
YC6M340N-30 |
|
Type |
Vertical,in-line,water-cooled,4-stroke, E-controlled pressure-adjustable fuel control |
|
No. of Cylinders |
6 |
|
Bore x Storke mm |
120 x 145 |
|
DisplacementL |
9.839 |
|
Intake way |
Turbo-charging and inter-cooling |
|
Fuel |
LPG
(Liquefied Petroleum Gas) |
CNG(Compressed Natural Gas) / LPG |
|
Rated power/Speed(kW/r/min) |
205/2100 |
221/2100 |
214/2100 |
228/2100 |
250/2100 |
|
Max. Torque/ Speed(N.m/r/min) |
1140/<= 1300 |
1200/<= 1300 |
1220/<= 1300 |
1280/<= 1300 |
1350/<= 1300 |
|
Min. Fuel Consumption at Full Load(g/kW.h) |
210 |
|
Noise (ISO 3744) dB(A) |
<= 93 |
|
Emission |
Euro III |
