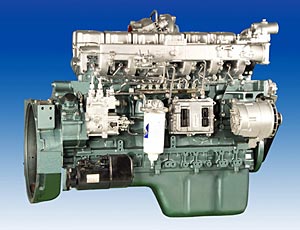

China Yuchai - YC6M Series 320-390 HP CR Diesel Engine for vehicles
Features And Benefits:
4-Valve Per Cylinder Technology-centered injector, more even atomization and more complete combustion, improved airflow, higher efficiency of air intake and exhaust, lower fuel consumption and better for environmental protection.
Full-Authority Electronic Controls - Optimize engine performance and provide seamless integration with other components, advanced diagnostics, plus a complete set of programming options.
High-performance Configuration:
> 4-valve per cylinder technology, higher efficiency of air intake and exhaust
> BOSCH high-pressure common rail technology, stronger capability
> Honeywell GT turbo-charger, optimized performance at high speeds
> Oil sump made of multilayer vibration-damping steel plate, lower noise
> Equipped with German Mahle pistons, more reliable operation
Stronger Power-10L displacement and Max. torque reaching 1680N.m,Maximum power 390HP, optimized performance at high speeds, quick response for acceleration
Lower emission-passed certification of both German TUV,meets Euro-II, Euro-III and Euro-IV standard of emission.
Lower Noise-Optimized piston profile and piston-to-cylinder clearance, lower the noise made by piston, adopting rear-positioned timing gear chamber and advanced point-line gear-meshing technology, lower the mechanical noise of the transmission system.
Main Technical Parameters
|
Model |
YC6M340-20 |
YC6M360-20 |
YC6M390-20 |
YC6M320-30 |
YC6M340-30 |
YC6M360-30 |
YC6M375-30 |
YC6M390-30 |
|
Type |
Vertical, in-line, 6 cylinder, water-cooled, 4-stroke |
|
No. of Valve |
24 |
|
Displacement(L) |
10 |
|
Intake Way |
Turbo-charging & Inter-cooling |
|
Rated power/speed(kW/ r/min) |
250/2100 |
266/2100 |
288/2100 |
236/2100 |
250/2100 |
266/2100 |
276/2100 |
288/2100 |
|
Max. Toque/speed(N∙m/ r/min) |
1460/1300~1500 |
1550/1300~1500 |
1650/<= 1600 |
1380/<= 1600 |
1460/<= 1600 |
1550/<= 1600 |
1550/<= 1600 |
1650/<= 1600 |
|
Min. fuel consumption at full load(g/kW∙h) |
<= 193 |
<= 193 |
|
Noise(ISO 3744) dB(A) |
<= 96 |
<= 96 |
|
Emission |
Euro-II |
Euro-III |
|
Net Mass(kg) |
880 |
880 |
|
Application |
12-13.7 meters buses |
12-13.7 meters buses |
