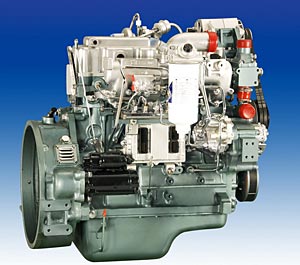

China Yuchai - YC4G Series 170-220 HP Diesel Engine for vehicles

Features And Benefits

Full-Authority Electronic Controls:
Optimize engine performance and provide seamless integration with other components, advanced diagnostics, plus a complete set of programming options.

-- Adopting CAD/UG 3D technology, critical component after CAE technical analysis, high reliability.
-- Adopting German FEV technology, further strengthened cylinder block , reduced vibration.
-- Adopting forged steel crankshaft, dry type cylinder liner, German Mahler special piston, which improve the engine in reliability.
-- Matching optimized Garrett turbocharger greatly increases the torque at lower speeds.
-- Adopting high efficiency filter separating water from the fuel improves the injection system in reliability.
-- Optimized piston-cylinder bore clearance ensures small quantity of compression blow-by and lower oil consumption.
-- Optimized crankshaft torsional damper lowers the shafting torsional vibration and extends the service life of shafting.
-- Optional dual spindle balance mechanism to be used for balancing the secondary to-and-fro inertial moment further lowers vibration and noise level.
-- Up to Euro-II or Euro-III standard of emission.
-- Human-oriented design, high interchangeability, excellent approachability, easier maintenance.

Main Technical Parameters

Model	YC4G180-30	YC4G200-30	YC4G220-30
Type	Vertical, in-line, water-cooled, 4 stroke, direct injection
No. of Cylinders	4
Displacement ( L)	5.2
Intake way	Turbo-charging & inter-cooling
Rated power/speed (kW/r/min)	132/2300	147/2200	162/2200
Max. torque/speed (N.m/r/min)	660/1300-1500	750/1300-1500	780/1300-1500
Min. fuel consumption at full load (g/kW.h)	<= 196
Noise(ISO 3744) dB(A)	<= 97
Emission (TAS)	Euro III
Net mass (kg)	450
Application	7.8-8.9 meter bus
Remarks	BOSCH E-controlled high pressure common rail

Model	YC4G170-20	YC4G180-20	YC4G200-20		YC4G220-20
Type	Vertical, in-line, water-cooled, 4 stroke, direct injection
No. of Cylinders	4
Displacement(L)	5.2
Intake way	Turbo-charging & inter-cooling
Rated power/speed (kW/r/min)	125/2300	132/2300	147/2200		162/2200
Max. torque/speed (N.m/r/min)	630/1400~1600	660/1400~1600	730/<= 1500		780/<= 1500
Min. fuel consumption at full load (g/kW.h)	<= 196
Noise(ISO 3744) dB(A)	<= 97
Emission (TAS)	Euro III			Euro II
Net mass(kg)	450
Application	7.8-8.9 meter bus		8.3-8.9 meter bus/9-10 meter bus
Remarks	BOSCH E-controlled high pressure common rail		China-made P7100 pump
