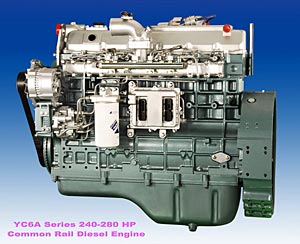

China Yuchai - YC6A Series 240-280 HP CR Diesel Engine for vehicles

Features And Benefits

Higher reliability - can bear the pressure up to 150 bar:
> Cylinder head with low vortex & low resistance airflow passages ensuring stable performance;
> Reinforced & optimized skirt of the cylinder block, smaller deformation & higher stability of performance;
> Wet type cylinder liner with higher body & supported from the bottom ensuring higher reliability & better maintainability;
> Adopting the technique of piston forced cooling;
> Adopting the technique of cylinder block water jacket with higher top ring;
> Adopting the pressure balancing technique of fuel-gas chamber of the crankcase;
> Built-in oil cooler ensuring higher cooling efficiency;
> Adopting Holset (Wuxi) new HX40W turbocharger with the air relief valve featured by better dynamic characteristic.

Full-Authority Electronic Controls:
Optimize engine performance and provide seamless integration with other components, advanced diagnostics, plus a complete set of programming options.

Stronger power:
Max. rated power 280 horse powers

Bigger torque:
Max. torque 1100 N.m

Lower emission:
Up to Euro II and Euro III standard

Lower fuel & oil consumption:
> Wider range of fuel consumption for outer characteristic and Min. fuel consumption at full load is equal to or less than 196g/kW.h

Lower Noise:
The average noise level at a distance of 1M is equal to or less than 97dB (A).

Better characteristic at low temperatures:
It is easily started without the cold starting device at a temperature of -18.C.

Main Technical Parameters

Model	YC6A240-30	YC6A260-30	YC6A280-30
Type	Vertical, in-line, water-cooled, 4 stroke, , direct injection
No. of Cylinders	6
Displacement (L)	7.255
Intake way	Turbo-charging & inter-cooling
Rated power/speed(kW/r/min)	177/2300	191/2300	206/2200
Max. torque/speed (N.m/r/min)	900/1400~1600	1000/1400~1600	1100/1400~1600
Min. fuel consumption at full load (g/kW.h)	<= 196
Noise (ISO 3744) dB(A)	<= 97
Emission (TAS)	Euro-II, Euro-III
Net mass (kg)	803
Application	9-11 meters buses

Model	YC6A240-20	YC6A260-20	YC6A280-20
Type	Vertical, in-line, water-cooled, 4 stroke, , direct injection
No. of Cylinders	6
Displacement(L)	7.255
Intake way	Turbo-charging & inter-cooling
Rated power/speed (kW/r/min)	177/2300	191/2300	206/2200
Max. torque/speed (N.m/r/min)	890/1400~1600	960/1400~1600	1100/1400~1600
Min. fuel consumption at full load (g/kW.h)	<= 196
Noise (ISO 3744)dB(A)	<= 97
Emission (TAS)	Euro II, Euro III
Net mass (kg)	803
Application	9-11 meters buses
