China Terca - TR Series Retarder

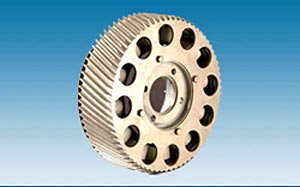

- Compact cylindrical Rotor structure, light weighted, small size, easy to dismantle;
- Radial distribution of magnetic field ensures little affection to rotor clearance move;
- Reach the maximum torque even though the vehicle speed lowers to 15km/h;
- The rotor is light weighted, so matching can dispense with additional axle which decreases the mounting space, especially to middle-sized vehicles with rear suspension or non-shorten drive shaft;
- Digital controlling system guarantees safety and accountability.
TR Series Parameter
|
Model |
Specifications(mm) |
Weight(kg) |
Voltage 24V |
Voltage 28V |
|
Max.current(A) |
Max.braking torque (Nm) |
Max.current(A) |
Max.braking torque (Nm) |
|
TR 03 |
# 390 x 130 |
42 |
31 |
285 |
37 |
332 |
|
TR 05 |
# 390 x 130 |
43 |
56 |
467 |
66 |
545 |
|
TR 07 |
# 450 x 150 |
72 |
52 |
654 |
62 |
758 |
|
TR 10 |
# 450 x 150 |
77 |
86 |
934 |
101 |
1069 |
|
TR 12 |
# 480 x 160 |
108 |
88 |
1126 |
102 |
1275 |
